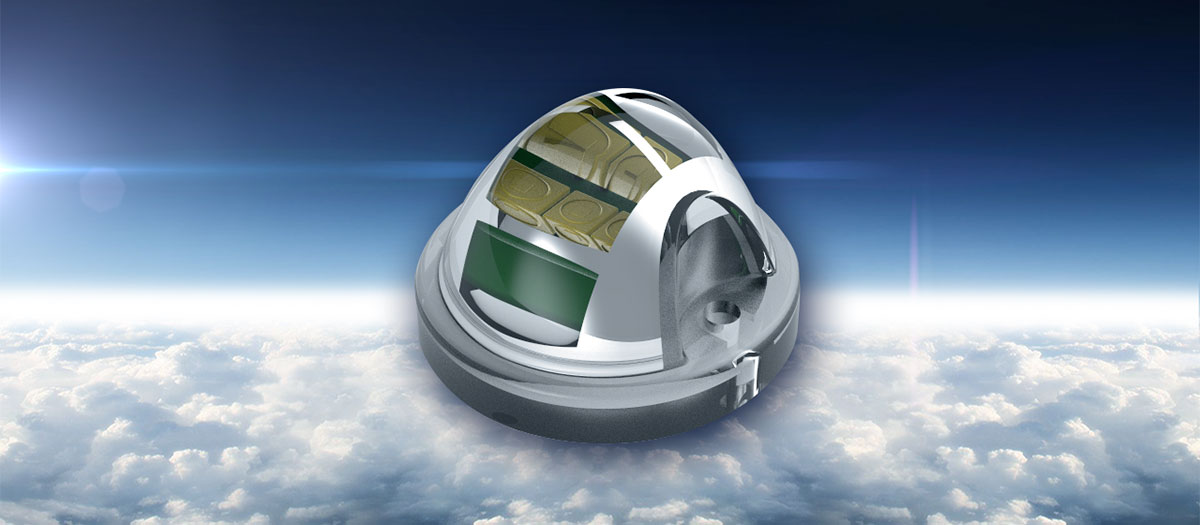

If your aircraft has an extremely thin and streamlined empennage, the PosiTail Nano™ is the ultimate solution! As the world’s smallest position light assemblies that meet all DO-160 and FAR requirements, this light will make your aircraft legal for night flying if your wing lights are not parallel to your aircraft centerline due to wingtip shapes.
6 High brightness LEDs for POSITION light coverage (140°)
Packed with 6 ultra high brightness CREE LEDs for POSITION mode in white color that are the industry state-of-the-art in performance and output lumens, the PosiTails feature a significantly lower footprint than competitor lights.
Lowest drag form factor & design in the industry
An extremely lightweight, aerodynamic and low-profile design make this the light of choice for any aircraft requiring a rear coverage light due to wingtip light coverage zone limits.
Waterproof / Shockproof / Dust-proof
All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.
| Dimensions (mm): | see picture on the left |
|---|---|
| Dimensions (inches): | see picture on the left |
| Weight (g): | 95 g |
| Weight (oz): | 3.35 oz |
| Operating Voltage Range: | 9 – 36 Vdc |
| Output power – white steady: | 2.7 W |
| Output current: | 0.075A/LED |
| Warm up time: | less than 3sec |
| Transcend voltage: | 60V, both polarities |
| Under-voltage lockout: | 9V , not more |
| Over-voltage lockout: | 36V, not less |
| Ambient temperature: | from -40°C to +85°C (from -40°F to +185°F) |
| Overheat protection: | +85°C / +185°F |
| Waterproof: | YES |
| Vibration-proof: | YES |
| Shock-proof: | YES |
| Dust-proof: | YES |
Installation Manual
