Atlas 10

Atlas-beforeAtlas10-after

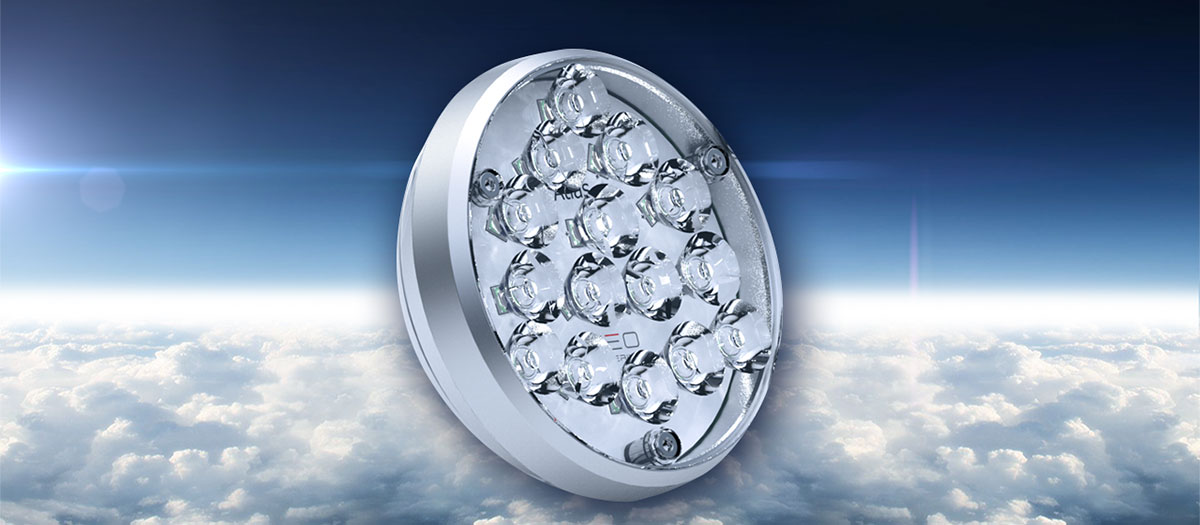

AveoEngineering introduces the exclusive next-generation landing/taxi/wigwag light module. The undeniable favorite in all global side-by-side comparison tests, the Atlas features 3 modes in its standard build…. Landing, Taxi or WigWag

FEATURES

6 High brightness LEDs for LANDING light function

4 High brightness LEDs for TAXI and WIGWAG mode

10 High brightness LEDs for FULL POWER with HIGH/LOW function

Easy to install

Available with a variety of mounting bracket solutions.

Waterproof / Shockproof / Dust-proof

All Aveo lights are waterproof, dust proof, and inert to most environmental conditions as they are all tested to categories of DO-160 exceeding the applicable requirements by far in external laboratories experienced in compliance demonstration of EASA ETSO appliances.

Environmentally Friendly

The Atlas™ uses far less power than competitive products illuminated by mercury-arc, high intensity discharge, or halogen lamps, which means they help to reduce air pollution from carbon emissions. Mercury and Lead-free, this RoHS compliant environmentally – friendly technology helps reduce power consumption and the amount of hazardous waste entering the environment. Finally, a “green” aircraft light!

IMAGE GALLERY
TECHNICAL SPECIFICATION

Installation Manual

ATLAS, A10 Hi/Lo
P/N: AVE-A10MWSSNH-00A
AVE-A10MWSSOH-00A (with Aveo bracket)
Number of LED: 10
Input voltage: from +9 to +36 VDC
Output power [Hi/Low]:

15/7W Taxi
46/22W Landing
61W/29W Taxi+Landing

Voltage protection: 80V, both polarities
Under-voltage lockout: 8.5V , not more
Over-voltage lockout: 37V, not less
Ambient temperature: from -40°C to +85°C
(from -40°F to +185°F)
Function description:

a. Taxi, steady light - 4 LEDs
b. Landing, steady light - 6 LEDs
c. Taxi+Landing - 10 LEDs
d. Synchro Mastrer function, active – low
e. Wig-Wag – Taxi LEDs only
f. Master/Slave select sequential and simultaneous Wig-Wag mode
g. High/Low power select for Landing and Taxi.

Beam Pattern: a. Landing: 12° Vert 12° Horizont
b. Taxi: 12° Vert 12° Horizont
Light Intensity (calculated): a. 54.000 cd - Landing Hi
b. 29.000 cd - Landing Lo
c. 18.000 cd - Taxi Hi
d. 10.000 cd - Taxi Lo
e. 72.000 cd - Landing + Taxi Hi
f. 39.000 cd - Landing + Taxi Hi
Color and shade: cool white, 5000K – White
Programmable Soft-Start: less than 50mS
Overheat protection: temperature dependent decrement intensity
Weight: less than 0.8lbs (364 g) with Aveo bracket
Useful life: not less than 30.000,0 aircraft flight hours
Dimension: 3.58” Round x 1.78” (D = 91mm, H = 45.3mm)
Material: a. Housing/Heatsink: Aluminum Alloy, natural anodizing
b. Lens: Clear PMMA
